PCB and CCL lamination aid
OptiLayup™ is an environmentally-friendly and cost effective alternative to standard plastic release films used as lamination processing aids.
As it is made of Genuine Vegetable Parchment; our unique cellulose composite; this new generation of release materials performs to protect lamination tools and offers exceptional anti-static properties for easy handling.
Find out more about the Genuine Vegetable Parchment technology here
Thanks to its stable operating performance, OptiLayup™ protects the press tools and increases performance in the massive lamination process for multilayer Rigid PCB (Printed Circuit Board) and CCL (Copper Clad Laminate) production.
Versatile usage

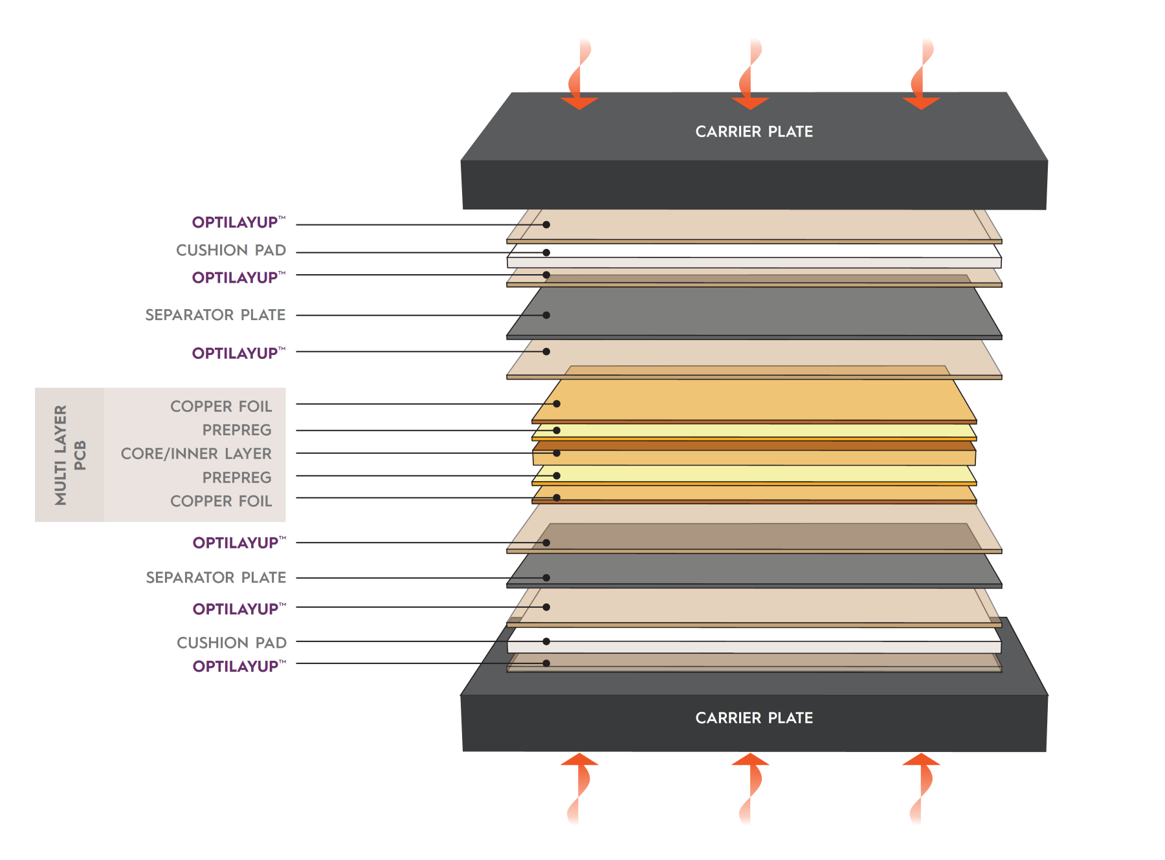

Our release product can be used on both side of the cushion press pad to avoid it sticking to the plates and consequently preventing any fiber cross contamination as well as an extensive and labor-intensive plate cleaning .
It can also be used between separator plates and substrates to protect the plates of resin squeeze-out and to preserve substrate integrity.
Click here to learn more about OptiLayup™ with a scientific poster that was developed for a conference.
See OptiLayup™ in action
Main benefits of this smart, cellulose-based technology
- Stable operating performance: Validated at 210°C/410°F, 275 PSI, 3 hours in a vacuum press
- Superior release: 4x better than PET films
- Eco friendly: 100% cellulose, from renewable resources, biodegradable & compostable
- Competitive total cost of ownership

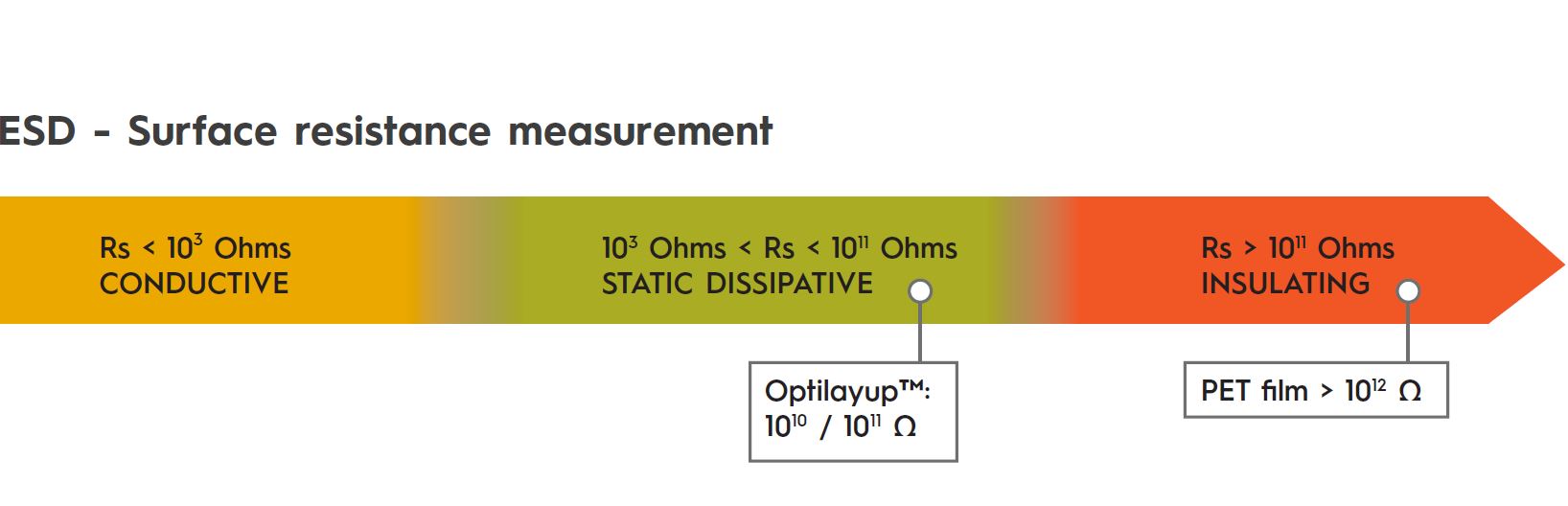

- Easy handling: lower static
 |
This product and more participate in transitioning packaging ƒrom Plastic to Purpose. Learn more about our philosophy and our webinars regarding the possibility of fiber-based solutions here |
